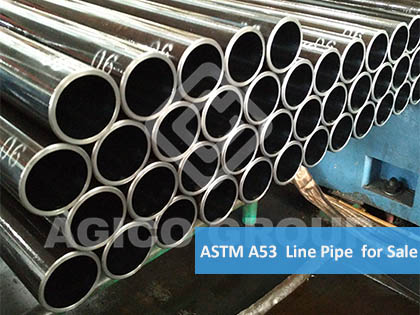

ASTM A53 Steel Pipe Supplied By ANSON-AGICO
ANSON-AGICO sells ASTM A53 Steel Pipes of many grades, Seamless Pipe(Grade A, Grade B), Welded Pipe(Type E, Type F). ASTM A53 Steel Pipe is vastly used in construction sites and underground transportation.
For example: it can be used to draw water from the ground as fluid pipe. It is used as pipeline pipes for gas and oil transmission as well as water power station, it is also used as structural steel in machinery parts, after coated with zinc, it is used in wind power plant.If you are in need of ASTM A53 Steel Pipe, Contact ANSON-AGICO now!
ASTM A53 Seamless Pipe Chemical Compostions:
| ASTM A53 |
Type S (seamless) |
||
|---|---|---|---|
| Chemical Composition | Grade A | Grade B | |
| Carbon max. % | 0.25 | 0.30 | |
| Manganese % | 0.95 | 1.2 | |
| Phosphorous, max. % | 0.05 | 0.05 | |
| Sulfur, max. % | 0.045 | 0.045 | |
| Copper, max.% | 0.40 | 0.40 | |
| Nickel, max. % | 0.40 | 0.40 | |
| Chromium, max. % | 0.40 | 0.40 | |
| Molybdenum, max. % | 0.15 | 0.15 | |
| Vanadium, max. % | 0.08 | 0.08 | |
ASTM A53 Welded Pipe Chemical Compostions:
| ASTM A53 | Type E | Type F | |
|---|---|---|---|
| Chemical Composition |
(electric- resistance welded) |
(furnace- welded pipe) |
|
| Grade A | Grade B | Grade A | |
| Carbon max. % | 0.25 | 0.30 | 0.3 |
| Manganese % | 0.95 | 1.2 | 1.2 |
| Phosphorous, max. % | 0.05 | 0.05 | 0.05 |
| Sulfur, max. % | 0.045 | 0.045 | 0.045 |
| Copper, max.% | 0.40 | 0.40 | 0.4 |
| Nickel, max. % | 0.40 | 0.40 | 0.4 |
| Chromium, max. % | 0.40 | 0.40 | 0.4 |
| Molybdenum, max. % | 0.15 | 0.15 | 0.15 |
| Vanadium, max. % | 0.08 | 0.08 | 0.08 |
Tensile Requirements for Seamless and Welded ASTM A53 Pipe
| Grade ASTM A53 | Seamless Pipes and Electric-resistance-welded Pipes | Continuous-Welded Pipes | |
|---|---|---|---|
| Mechanical Property | Grade A | Grade B | |
| Tensile Strength, min., psi | 48,000 | 60,000 | 45,000 |
| Yield Strength, min., psi | 30,000 | 35,000 | 25,000 |
Test Requirements for ASTM A53 Steel Pipes
| Test Types | ASTM A53 Pipe Test Details |
|---|---|
| Number of Tests Required | Seamless and Electric-Resistance-Welded — Bending, flattening, tensile on one length of pipe from each lot of 500 lengths or less of a size. |
| Hydrostatic Testing | Hydrostatic inspection test pressures for plain end and threaded and coupled pipe are specified. Hydrostatic pressure shall be maintained for not less than 5 seconds for all sizes of seamless and electric-resistance-weld pipe. |
| Mechanical Tests Specified | Tensile Test — Transverse required on ERW for NPS 8 and large. Sending Test (Cold) — STD and XS-NPS 2 and under XXS-NPS 1 1/4 and under. |
