Scaffolding Steel Prop Details
-
Dimension: According to drawing
-
Raw Material: Q235b
-
Tensile Strength: 4.8
-
Surface treatment: powder coating, hot-dip galvanizing.

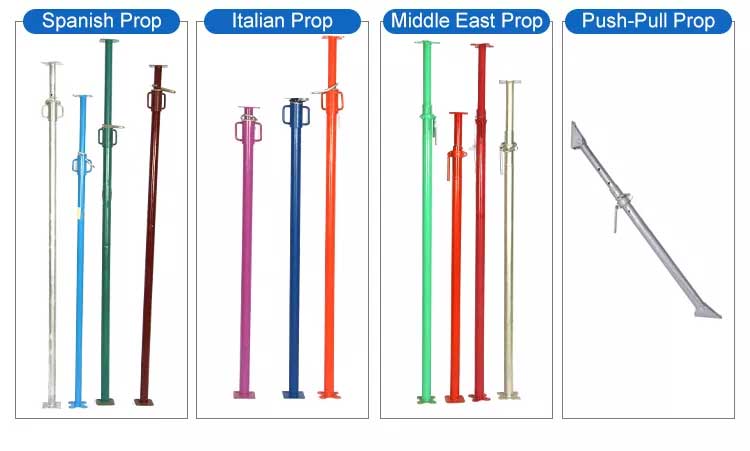

Adjustable Scaffolding Steel Prop Types Available
Steel Prop is a type of structural support for buildings in construction project, it is a type of adjustable vertical pipe support, customer can adjust the length by insert high tensile steel pin in a slot in the outer section and inner section. It also has a roled thread section for adjustable nut to make the structure more tight and safe. A piece of steel prop has internal tube, external tube, prop nut, base plate and top plate. Here is the widely used paremeters.
SPANISH PROP
|
Adjustable Length |
Outer Tube |
Inner Tube |
Wall Thickness |
|
0.8-1.4m |
48mm |
40mm |
From 1.5 to 2.5mm |
|
1.6-3.0m |
|
2.0-3.5m |
|
2.2-4.0m |
|
Surface Treatment |
Paint,Powder Coated,Electro galvanized or Hot Dipped Galvanized |
ITALIAN PROP
|
Adjustable Length |
Outer Tube |
Inner Tube |
Wall Thickness |
|
1.6-2.9m |
56mm |
48mm |
From 1.5 to 2.75mm |
|
1.8-3.1 m |
|
2.0-3.6m |
|
2.0-4.0m |
|
Surface Treatment |
Paint,Powder Coated,Electro galvanized or Hot Dipped Galvanized |
MIDDLE EAST OR GERMAN PROP(heavy duty prop)
|
Adjustable Length |
Outer Tube |
Inner Tube |
|
|
1.4-2.7m |
60.3mm |
48.3mm |
|
|
1.6-2.7m |
|
1.62-2.64m |
|
2.0-3.9m |
|
2.1-4.1ni |
|
2.5-4.5m |
|
3.0-5.0m |
|
Surface Treatment |
Paint.Powder Coated,Electro galvanized or Hot Dipped Galvanized |
PUSH-PULL PROP
|
Adjustable Length |
Outer Tube |
Inner Tube |
Wall Thickness |
|
1.4-2.7m |
60.3mm |
48.3mm |
From 1.6 to 4.0mm |
|
1.6-2.7m |
|
1.62-2.64m |
|
2.0-3.9m |
|
2.2-4.1m |
|
2.5-4.5m |
|
3.0-5.0m |
|
Surface Treatment |
Paint. Powder Coated, Electro galvanized or Hot Dipped Galvanized |

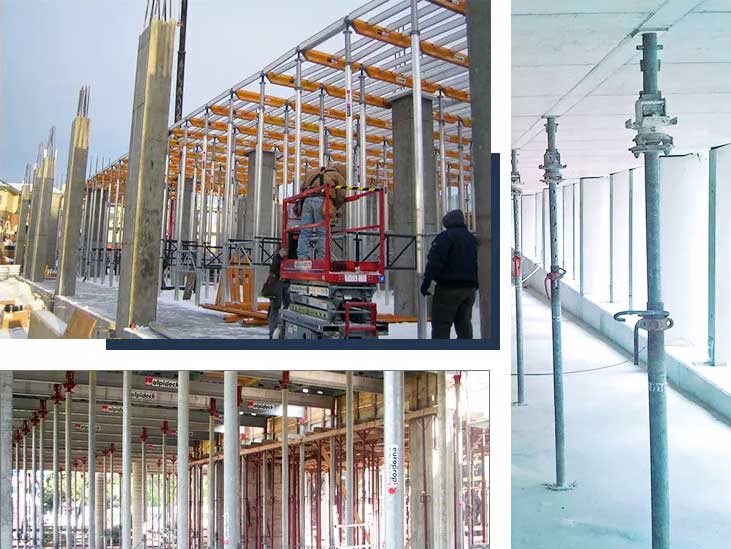

Scaffolding Steel Prop Application
The steel prop is widely used in the construction and DIY industries for the temporary support of ceilings, trenches, and walls. It can be used in the interior building construction project.
