- Steel standard: ASME SA-179M, ASME SA-106, ASTM A178, ASME SA-192M, EN10216-1, JIS G3461, ASME SA-213M, DIN17175, DIN1629.
- Dimention range: OD:48MM--711MM Wall Thickness:2.5mm—50mm.
- Delivery state: Annealed, normalized, tempered. surface oiled, black painted, shot blasted, hot dipped galvanized.
| Carbon | Steel standard | Steel grade |
|---|---|---|
| ASME SA-179M | SA179 | |
| ASME SA-106 | A, B, C | |
| ASTM A178 | A, C, D | |
| ASME SA-192M | SA192 | |
| ASME SA-210M | A1, C | |
| EN10216-1 | P195TR1/TR2,P235TR1/TR2,P266TR1/TR2 | |
| EN10216-2 | P195TR1/TR2,P235TR1/TR2,P266TR1/TR2 | |
| JIS G3454 | STPG370,STPG410 | |
| JIS G3461 | STB340,STB410,STB440 | |
| GB5310 | 20G,15MoG,12CrMoG,12Cr2MoG |
| Alloy | Steel standard | Steel grade |
|---|---|---|
| ASME SA-213M | T2,T5,T9,T11,T12,T22,T23,T91 | |
| ASME SA-213M | TP304H,TP347H,TP309H | |
| ASME SA-335M | P1,P2,P5,P11,P12,P22,P91 | |
| DIN17175 | ST35.8, ST45.8 | |
| DIN1629 | ST37.0,ST44.0,ST50.0 |
Product Description:
Agico exports steel boiler pipe(seamless steel pipe and welded steel pipe) according to the production methods, steel boiler pipe specifications with overall dimensions (such as the diameter or length) and the wall thickness, steel boiler pipe can be used in the pipeline, thermal technology equipment, industrial machinery, petroleum geological exploration, containers, chemical industry, and other special purpose.
Seamless Alloy Steel Pipe ASME SA 213

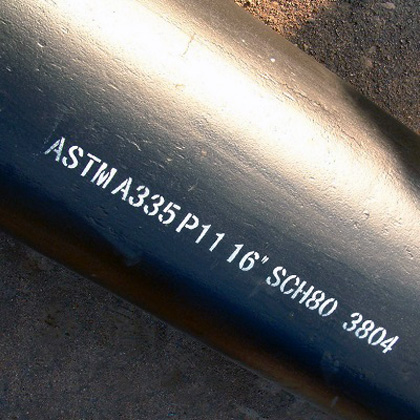

Alloy Steel Pipe ASTM A335
Din 17175 Steel Tube for sale
Application:
- ASME SA-179M: Seamless Cold Drawn Low Carbon Steel Heat Exchanger and Condenser Tubes.
- ASME SA-106: Carbon Steel Pipe For High Temperature Serice.
- ASTM A178: Electric-Resistance-Welded Carbon Steel and Carbon-Manganese Steel Boiler and Superheater Tubes.
- ASME SA-192M: Seamless Carbon Steel Boiler Tubes for High Pressure Devices.
- ASME SA-210M: Seamless Medium Carbon Steel Boiler and Superheater Tubes.
- EN10216-1/2: Seamless non-alloy steel tubes for pressure purposes with specified room temperature properties.
- JIS G3454: Carbon steel pipes for pressure service at an approximate maximum temperature of 350 Degrees Celsius.
- JIS G3461: Carbon Steel Tubes for Boiler and Heat Exchanger.
- GB 5310: Seamless steel tubes and pipes for high pressure boiler.
- ASME SA-213M: Seamless ferritic and austenitic alloy steel boiler, superheater and heat-exchanger tube.
- ASME SA-335M: Alloy Steel Tubes for boilers, superheaters and heat exchangers.
- DIN 17175: Seamless Steel Tubes for Boiler Industry, heat-resisting seamless steel tube, used for the pipelines of boiler industry.
- DIN 1629: Overheated boilers, manufacturing pipeline, vessel, equipment, pipe fittings, and as heat exchangers via austenitic pipes.
