- Steel standard: ASTM/ASME(S)A 285M, ASTM/ASME(S)A 516M, EN 10028-2, ASTM A387/ASME SA387, etc.
- Delivery state: Hot-rolled, controlled rolling, normalizing, annealing, tempering, normalizing and tempering.
- Dimension: Thickness: 3mm-600mm; Width: 1500mm-3000mm; Length: 3000mm-11000mm.
| Steel Standard | Steel Grade |
|---|---|
| JIS G3103 | SB410, SB450, SB480 |
| JIS G3115 | SPV235, SPV315, SPV355, SPV410, SPV450, SPV490 |
| JIS G3118 | SGV410, SGV450, SGV480 |
| JIS G3124 | SEV245, SEV295, SEV345 |
| ASTM/ASME(S)A 515M | Gr60, Gr65, Gr70 |
| ASTM/ASME(S)A 516M | Gr55, Gr60, Gr65, Gr70 |
| ASTM/ASME(S)A 285M | A, B, C |
| EN 10028-2 | P235GH, P265GH, P295GH, P355GH |
| Steel Standard | Steel Grade |
|---|---|
| JIS G3119 | SBV1A, SBV1B, SBV2, SBV3 |
| ASTM/ASME(S) A 204M | A, B, C |
| ASTM/ASME(S) A 387M | 11, 12, 22 |
| ASTM/ASME(S)A 537M | CL1, CL2 |
| ASTM/ASME(S)A 662M | A, B, C |
| ASTM/ASME(S)A 302M | A, B, C, D |
| ASTM/ASME(S)A 737M | B, C |
| ASTM/ASME(S)A 738M | A, B, C |
| ASTM/ASME(S)A 533M | I, II |
Product Description:
Steel boiler plate is used for container manufacturing of petroleum and chemical industry, gas separation, gas storage and transportation or other similar equipment, high quality carbon steel plate and high strength low alloy structural steel plate are used in projects like tower, heat exchanger, storage tank, etc.
Agico is one experienced boiler steel plate supplier in China, our steel plate is featured with high toughness and low tendency, easy welding and corrosion resistant. Good properties of our product can last for a longer time compared with other steel suppliers.

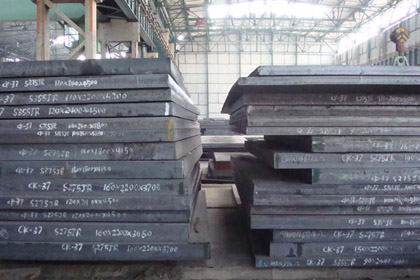

JIS G3103 Pressure Vessel Plate
Application:
- JIS G3103: Carbon steel and molybdenum alloy steel plates for boilers and pressure vessels.
- JIS G3115: Steel plates for pressure vessels for intermediate temperature service.
- JIS G3118: Carbon steel plates for pressure vessels for intermediate and moderate temperature services.
- JIS G3119: Manganese-molybdenum and manganese-molybdenum-nickel alloy steel plates for boilers and pressure vessels.
- JIS G3124: High strength steel plates for pressure vessel for intermediate and moderate temperature service.
- ASTM A 515M: carbon steel pressure vessel plate for intermediate and higher temperature service
- ASTM A 516M: Pressure Vessel Plates, Carbon Steel for Moderate and Lower-Temperature Service
- ASTM A 204M: molybdenum-alloy steel plates, intended particularly for welded boilers and other pressure vessels.
- ASTM A 387M: Cr-Mo-alloy steel plates material used to fabric high temperature pressure vessels.
- ASTM A 537M: heat-treated carbon manganese-silicon steel plates intended for fusion welded pressure vessels and structures.
- ASTM A 662M: Carbon Mn steel plates material used to fabric middle or low temperature pressure vessels.
- ASTM A 302M: Mn-Mo and Mn-Mo-Ni alloy steel plates for pressure vessels.
- ASTM A 738M: C-Mn-Si steel plates material used to fabric middle or low temperature pressure vessels.
- EN10028-2: Pressure Vessel And Boiler Steel Plate are used in Pressure Vessel ,Boiler, Storage Tanks and Heat Exchanger in Oil, Gas Project.
