- Steel standard: ASTM A606M, ASTM A871M, ASTM A709M, ASTM A242M, ASTM A588M, JIS G3125, JIS G3114 ,EN 10025
- Delivery state: Annealed, Normalized and Tempered, Hot Rolled.
- Surface treatment：Oiled, shot blasted, Rust-Stabilizing,no futher treatment.
- Inspection：X-ray inspection,manual ultrasonic inspection,surface inspection,hydraulic testing, ultrasonic detection.
| Steel standard | Steel grade | |||
|---|---|---|---|---|
| ASTM A606M | Type 4 | |||
| ASTM A871M | Gr60 | Gr65 | ||
| ASTM A709M | HPS50W | |||
| ASTM A242M | A | B | C | D |
| ASTM A588M | A | B | C | K |
| JIS G3125 | SPA-H | |||
| JIS G3114 | SMA400 | SMA490 | SMA570 | |
| EN 10025 | S355 | |||
| GB/T 4171 | Q235NH | Q355NH | Q460NH | Q550NH |
Product Description:
The applicable equivalent ASTM specifications for weathering steel are ASTM A588, ASTM A242, ASTM A606-4, ASTM A847 and ASTM A709-50W, other standards JIS G3125, JIS G3114, EN10025 and GB/T4171. AGICO-ANSON STEEL supplies various products including, steel sheet, steel coil, steel plate, steel flats, angles, channels.
Corten steel is invented and named by US steel as brand name of corrosion resistant steel product, it is now being produced by many other steel mills, ANSON STEEL can supply best corten steel product with guaranteed high quality.
Corten A and Corten B are 2 prevalent steel grades, corten steel has equivalent steel grades in ASTM steel grades: Corten A for ASTM A242 and Corten B for ASTM A588 Grade A. Steel product requirements for both corten A and B can meet ASTM A606 Type 4.
Weathering Steel Product Specifications and Dimension Range:
| Weathering Steel Product | Steel Grade | Available Dimension | Steel Standard | |
|---|---|---|---|---|
| Steel Coil | Heavy Plate | |||
| Weathering Steel Plate/Coil for Welding | Q235NH | 1.5-19*800-1600 | 6-50*1600-3000 | GB/T 4171-2008 or according to technical protocol |
| Q295NH | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| Q355NH | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| Q460NH | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| Q550NH | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| High-performance Weathering Steel Plate/Coil | Q295GNH | 1.5-19*800-1600 | ||
| Q355GNH | 1.5-19*800-1600 | |||
| (ASTM)Hot-rolled and Cold-rolled Steel Sheet and Strip | A606M | 1.2-19*800-1600 | 6-50*1600-3250 | ASTM A606M-2009 or according to technical protocol |
| (ASTM)Atmospheric Corrosion Resistance of High Strength Low Alloy Steel Plate | A871M Gr60A871M Gr65 | 1.2-19*800-1600 | 6-50*1600-3250 | ASTM A871M-97 or according to technical protocol |
| (ASTM)Carbon Steel Plate and Low Alloy High Strength Structural Bridge Steel Plate | A709M HPS50W | 1.2-19*800-1600 | 6-50*1600-3250 | ASTM A709M-2007 or according to technical protocol |
| (ASTM)Low-Alloy High-Tensile Structural Steel Plate/Coil | A242M GrAA242M GrBA242M GrCA242M GrD | 1.2-19*800-1600 | 6-50*1600-3250 | ASTM A242M-03a or according to technical protocol |
| High Strength Low Alloy Structural Steel Plate/Coil(yield strength≥345MPa,thickness≤100) | A588M GrAA588M GrBA588M GrCA588M GrK | 1.2-19*800-1600 | 6-50*1600-3250 | ASTM A588M-01 or according to technical protocol |
| Weathering Steel For Railway Vehicle | 09CuPCrNi-A/B | 1.5-19*800-1600 | 6-50*1600-2500 | TB-T1979-2003 |
| Q400NQR1 | 1.5-19*800-1600 | 6-50*1600-3000 | Freight Shipping[2003]387according to technical protocol | |
| Q450NQR1 | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| Q500NQR1 | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| Q550NQR1 | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| Weathering Steel For Container | SPA-H | 1.5-19*800-1600 | 6-50*1600-2500 | JIS G3125 or according to technical protocol |
| SMA400AW/BW/CW | 1.5-19*800-1601 | 6-50*1600-3000 | JIS G 3114 or according to technical protocol | |
| SMA400AP/BP/CP | 1.5-19*800-1602 | 6-50*1600-3000 | ||
| SMA490AW/BW/CW | 2.0-19*800-1603 | 6-50*1600-3000 | ||
| SMA490AP/BP/CP | 2.0-19*800-1604 | 6-50*1600-3000 | ||
| SMA570AW/BW/CW | 2.0-19*800-1605 | 6-50*1600-3000 | ||
| SMA570AP/BP/CP | 2.0-19*800-1606 | 6-50*1600-3000 | ||
| EN weathering structural steel | S235J0W | 1.5-19*800-1600 | 6-50*1600-3000 | EN10025-5 or according to technical protocol |
| S235J2W | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| S355J0W | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| S355J2W | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| S355K2W | 1.5-19*800-1600 | 6-50*1600-3000 | ||
| S355J0WP | 1.5-19*800-1600 | 8-50*1600-2500 | ||
| S355J2WP | 1.5-19*800-1600 | 8-50*1600-2500 | ||
Weathering Steel Equivalent Standard Table(ASTM, JIS, EN, ISO)
| GB/T4171-2008 | ISO 4952-2006 | ISO5952-2005 | EN10025-5：2004 | JIS G3114-2004 | JIS G3125-2004 | A242M-04 | A588M-05 | A606M-04 | A871M-03 |
|---|---|---|---|---|---|---|---|---|---|
| Q235NH | S235W | HSA235W | S235J0W,J2W | SMA400AW,BW,CW | |||||
| Q295NH | |||||||||
| Q355NH | S355W | HSA355W2 | S355J0W,J2W,K2W | SMA490AW,BW,CW | Grade K | ||||
| Q415NH | S415W | 60 | |||||||
| Q460NH | S460W | SMA570W,P | 65 | ||||||
| Q500NH | |||||||||
| Q550NH | |||||||||
| Q295GNH | |||||||||
| Q355GNH | S355WP | HSA355W1 | S355J0WP,J2WP | SPA-H | Type1 | ||||
| Q265GNH | |||||||||
| Q310GNH | Type4 |

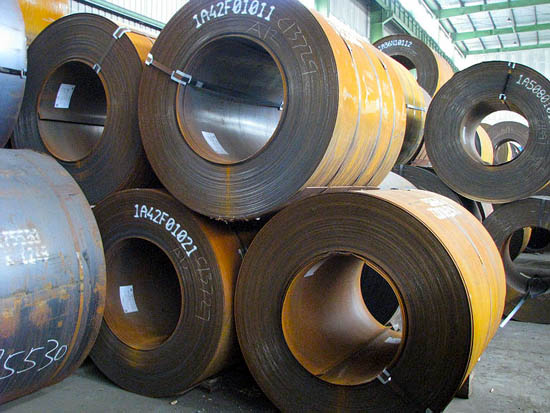

ASTM A709 Steel Coil

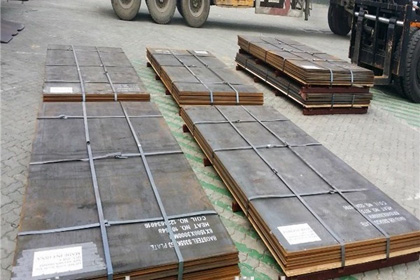

Hot Rolled ASTM A588 Steel Plate
Application:
- ASTM A606M: High-strength, Low-Alloy, Hot-Rolled and Cold-Rolled steel plate and strips cut in lengths or coils for structural and miscellaneous purposes.
- ASTM A871M: High-Strength Low-Alloy Structural Steel Plate With Atmospheric Corrosion Resistance.
- ASTM A709M: High-strength Low Alloy Steel Structural Shapes, Plates and Bars, Quenched and Tempered Alloy Steel for Structural Plates intended for use in bridges.
- ASTM A242M: Weathering Resistant High Strength Low Alloy Structural Steel Plate and Coil.
- ASTM A588M: High-Strength Low-Alloy Structural Steel, up to 50 ksi [345 MPa] Minimum Yield Point, with Atmospheric Corrosion Resistance.
- JIS G3125 SPA-H: Hot Rolled Steel for Superior Atmospheric Corrosion Resistance Steel Plates, Sheets, Strips.
- JIS G3114: Hot-Rolled Atmospheric Corrosion Resisting Steel for Welded Structure.
- EN 10025: Hot Rolled Products of Structural Steels Refers to European Standards Which Specify Technical Delivery Conditions for Hot Rolled Products of Structural Steels.
