What is Aluminum Expanded Metal
Aluminum Expanded Metal, expanded aluminum sheet (Expanded aluminium mesh) is a sheet product that has been slit and stretched to a wide array of diamond shaped openings, The surface comes in two types: raised and flattened. Flattened expanded aluminium mesh is with a flat and smooth surface formed by rolling a raised mesh. Aluminum Expanded Metal offers savings in weight and metal, free passage of light, liquid, sound, and air, while providing a decorative or ornamental effect.
Aluminum Expanded Metal Panel Specification:
Patterns | L.W.D (Long Way Diamond) | ||
---|---|---|---|
S.W.D. (Short Way Diamond) | |||
Other shapes can be manufactured | |||
Material types | 1 series (alu≥99.5%): | aluminum 1060, 1050, 1100 (1060 model is most popular). |
Ductility/stretch ability: 1series>3series>5series. Toughness: 1series<3series<5series Cost: 1series<3series<5series |
3 series(include aluminum, manganese): | aluminum 3003 | ||
5 series(include aluminum, magnesium): | aluminum 5005 and 5052 | ||
Surface treatment | For Architectural and decorative use, there are mainly 3 types of finish treatment methods : anodizing, powder coating and PVDF. | ||
Brand of coating | Jotun, Tiger, PPG, AKZO | AAMA2604 : 10 years warranty | All of the coatings we use are famous brand imported from abroad and and are satisfied with AAMA standard. |
AAMA2605 : 15 years warranty | |||
AAMA2606 : 20 years warranty | |||
Other Service | Customized is acceptable. | ||
Frame support and installation drawingare provided. | |||
Application |
The functions of aluminum expanded metal are very versatile. Openings formed in fabricating process allow air, sound, light and heat to pass through. The decorative patterns are mainly used for aesthetic purposes such as building façade, interior ceiling, projection screen, canopy screen ,enclosure etc… |
Aluminum Expanded Metal Panel Color:
![Aluminum Expanded Metal Panel Color.jpg](/uploads/allimg/Aluminum-Expanded-Metal-Panel-Color.jpg)
The fixing system is designed based on the mesh specification and actual site situation, it mostly functions as ceiling system and building facade, please contact our sales for detailed solution.
Fixing System (Ceiling System )
![Aluminum Expanded Metal Panel upside pattern 1](/uploads/allimg/Aluminum-Expanded-Metal-Panel-upside-pattern-1.jpg)
![Aluminum Expanded Metal Panel upside pattern 2](/uploads/allimg/Aluminum-Expanded-Metal-Panel-upside-pattern-2.jpg)
![Aluminum Expanded Metal Panel upside pattern 3](/uploads/allimg/Aluminum-Expanded-Metal-Panel-upside-pattern-3.jpg)
![Aluminum Expanded Metal Panel upside pattern 4](/uploads/allimg/Aluminum-Expanded-Metal-Panel-upside-pattern-4.jpg)
Fixing System (Building Facade )
![Aluminum Expanded Metal downside pattern 1](/uploads/allimg/Aluminum-Expanded-Metal-Panel-downside-pattern-1.jpg)
![Aluminum Expanded Metal downside pattern 2](/uploads/allimg/Aluminum-Expanded-Metal-Panel-downside-pattern-2.jpg)
![Aluminum Expanded Metal building facade joint](/uploads/allimg/Aluminum-Expanded-Metal--building-facade-joint-detail.jpg)
![Aluminum Expanded Metal Panel fixing system joint](/uploads/allimg/Aluminum-Expanded-Metal-Panel-fixing-system-joint.jpg)
Popular Patterns show- Diamond Hole
![Diamond Hole Aluminum Expanded Pannel](/uploads/allimg/Diamond-hole-ALUMINUM-EXPANDED-METAL-PANEL.jpg)
Popular Pattern Show- Hexagonal Hole
![Hexagonal Hole Aluminum Expanded Metal](/uploads/allimg/Aluminum-Expanded-Metal-Hexagonal-Hole.jpg)
Popular Pattern Show- Irregular Hole/Pattern
![Irregular Hole Aluminum Expanded Metal Panel](/uploads/allimg/Aluminum-expanded-metal-panel-Irregular-Hole.jpg)
Features of the Aluminum Expanded Metal Cladding System
- Beautiful appearance
- Light weight and easy installation
- Sturdy and durable
- Allows for free passage of air, light, heat and sound
- Corrosion resistance and long life-time.
- Suitable for decorative and functional purposes
Aluminum Expanded Metal Production Process
![aluminum expanded metal pannel production](/uploads/allimg/aluminum-expanded-metal-pannel-production.jpg)
Aluminum Expanded Metal Application
![Building Facade](/uploads/allimg/building-facade.jpg)

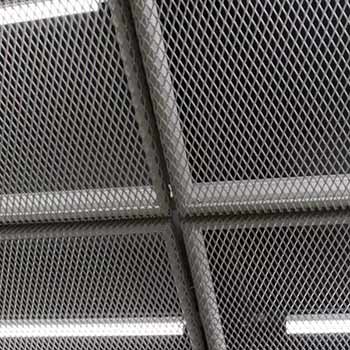

![Interior celling](/uploads/allimg/interior-ceiling.jpg)
![Metal Protection Screen](/uploads/allimg/metal-projection-screen.jpg)

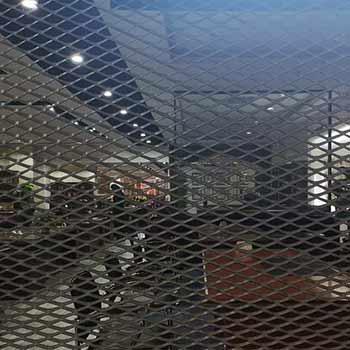

![Wall Partition](/uploads/allimg/wall-partition.jpg)
