EN10025 2-S235|S275|S355 Steel Plate Specification

HOME > Processing Technoloy > Steel standard

Hot rolled structural steel plate-En10025-2 Steel Products:

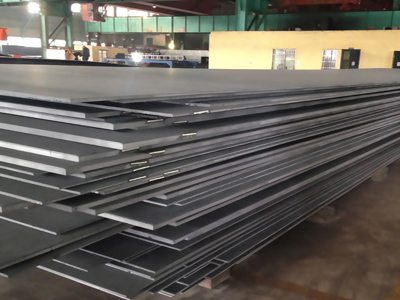

S235 Steel Plate

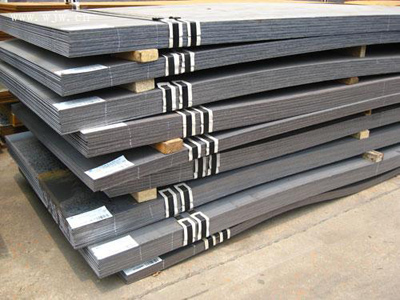

S275 Hot Rolled Steel Plate

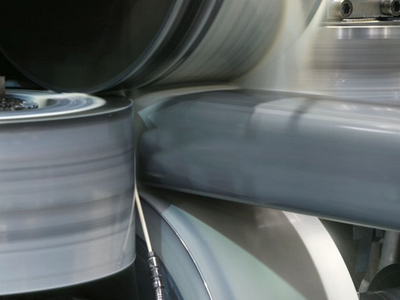

S355 Rectangular Steel Pipe

AGICO ANSON is able to supply all kinds of structural steel plate produced by En10025-2 standard, which mainly includes 4 major grades: S235, S275, S355 and S450, there's also more specific steel grades for different mechanical properties. As same as common structural steel, steel plate and pipes under this standard are featured with good weldability, formability, hot forming, cold formability, flangeability, roll forming, and suitable for hot dip zinc coating.

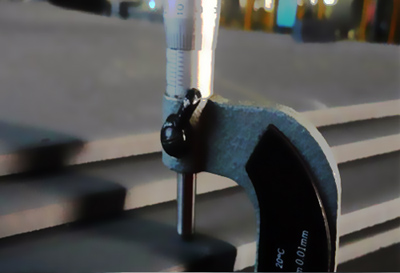

S355NL Steel Plate Thickness Measurement

Scope: En10025-2 is European standard which specifies the technical delivery conditions for flat and long products(includes steel plate and steel pipes),and semi-finished products which are manufactured for further processing of hot rolled non-alloy quality steels in series of grades and qualities.

Application: Steel Structure: bridge components, offshore structures, Power plants Mining and earth-moving equipment Load-handling equipment Wind tower components, etc.

EN10025-2 Equivalent Standard :

Steel Standard	S235JR	S235J0	S235J2	S275JR	S275J0	S275J2	S355JR	S355J0	S355J2	S355K2
Germany	RSt37-2	St37-3U	-	St 44-2	St44-3/3U	-	-	St52-3U	St52-3N	St52-3N
Japan	SM400A SS400	SM400B	-	SS400	-	-	SM490A SS490	SS490B	SS490YA	SS490YA
China	Q235A Q235B Q235D	Q235C	Q235D	Q275Z	Q275	Q275	Q345C	16Mn	Q345D	Q345D
USA	-	-	A36	A529	-	-	A572	-	A656	A656

EN10025-2 Chemical Composition:

EN 10025	C(max)			Si max	Mn% max	P max	S% max	Cu% max	N% max
EN 10025	t≤16	16<t≤40	t>40	Si max	Mn% max	P max	S% max	Cu% max	N% max
S235JR	0.17	0.17	0.20	-	1.40	0.035	0.035	0.55	0.012
S235J0	0.17	0.17	0.17	-	1.40	0.030	0.030	0.55	0.012
S235J2	0.17	0.17	0.17	-	1.40	0.025	0.025	0.55	-
S275JR	0.21	0.21	0.22	-	1.50	0.035	0.035	0.55	0.012
S275J0	0.18	0.18	0.18	-	1.50	0.030	0.030	0.55	0.012
S275J2	0.18	0.18	0.18	-	1.50	0.025	0.025	0.55	-
S355JR	0.24	0.24	0.24	0.55	1.60	0.035	0.035	0.55	0.012
S355J0	0.20	0.20	0.22	0.55	1.60	0.030	0.030	0.55	0.012
S355J2	0.20	0.20	0.22	0.55	1.60	0.025	0.025	0.55	-
S355K2	0.20	0.20	0.22	0.55	1.60	0.025	0.025	0.55	-
S450J0l	0.20	0.20	0.22	0.55	1.70	0.030	0.030	0.55	0.025

EN10025-2 Mechanical Property:

EN 10025-2	Minimum yield strength MPa Thickness(mm)									Tensile strength Thickness(mm)
EN 10025-2	≤16	16<t≤40	40<t≤63	63<t≤80	80<t≤100	100<t≤150	150<t≤200	200<t≤250	250<t≤400	t<3	3≤t≤100	100<t≤150	150<t≤200	250<t≤400
S235JR	235	225	215	215	215	195	185	175	-	360-510	360-510	350-500	340-490	-
S235J0	235	225	215	215	215	195	185	175	-	360-510	360-510	350-500	340-490	-
S235J2	235	225	215	215	215	195	185	175	165	360-510	360-510	350-500	340-490	330 to 480
S275JR	275	265	255	245	235	225	215	205	-	430-580	410-560	400-540	380-540	-
S275J0	275	265	255	245	235	225	215	205	-	430-580	410-560	400-540	380-540	-
S275J2	275	265	255	245	235	225	215	205	195	430-580	410-560	400-540	380-540	380-540
S355JR	355	345	335	325	315	295	285	275	-	510-680	470-630	450-600	450-600	-
S355J0	355	345	335	325	315	295	285	275	-	510-680	470-630	450-600	450-600	-
S355J2	355	345	335	325	315	295	285	275	265	510-680	470-630	450-600	450-600	450-600
S355K2	355	345	335	325	315	295	285	275	265	510-680	470-630	450-600	450-600	450-600
S450J0l	450	430	410	390	380	380	-	-	-	-	550-720	530-700	-	-

If you need the latest price for steel plate of S235, S275, S355 or other low carbon steel product, please contact us now by calling or email,AGICO-Ourway is always ready to offer you the best sales service!
