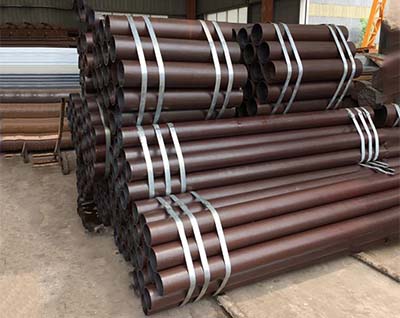

ASTM A333 seamless Steel Pipe Scope
ASTM A333 standard covers wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. ASTM A333 alloy pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation. All seamless and welded pipes shall be treated to control their microstructure. Tensile tests, impact tests, hydrostatic tests, and nondestructive electric tests shall be made in accordance to specified requirements. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.
ASTM A333 steel pipe production includes a series of visual surface imperfections to guarantee that they have been properly manufactured. ASTM A333 steel pipe shall be subject to rejection if surface imperfections acceptable are not scattered, but appear over a large area in excess of what is considered a workmanlike finish. The finished pipe shall be reasonably straight.
ASTM A333 Steel Pipe Surface inspection requirements
Surface imperfections that penetrate more than 12½ % of the nominal wall thickness or encroach on the minimum wall thickness shall be considered defects. ASTM A333 steel pipe with such defects shall be given one of the following dispositions:- The defect may be removed by grinding provided that the remaining wall thickness is within specified limits.
- Repaired in accordance with the repair welding provisions.
- The section of pipe containing the defect may be cut off within the limits of requirements on length.
- The defective pipe may be rejected.
ASTM A333 Steel Pipe Chemical Composition:
| Standard | Grade | Chemical Composition (%) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo | V | Al | ||
| ASTM A333 | Grade 1 | ≤0.30 | 0.40~1.06 | ≤0.025 | ≤0.025 | |||||||
| Grade 3 | ≤0.19 | 0.18~0.37 | 0.31~0.64 | ≤0.025 | ≤0.025 | 3.18~3.82 | ||||||
| Grade 4 | ≤0.12 | 0.18~0.37 | 0.50~1.05 | ≤0.025 | ≤0.025 | 0.44~1.01 | 0.47~0.98 | 0.40~0.75 | 0.04~0.30 | |||
| Grade 6 | ≤0.30 | ≥0.10 | 0.29~1.06 | ≤0.025 | ≤0.025 | |||||||
| Grade 7 | ≤0.19 | 0.13~0.32 | ≤0.90 | ≤0.025 | ≤0.025 | 2.03~2.57 | ||||||
| Grade 8 | ≤0.13 | 0.13~0.32 | ≤0.90 | ≤0.025 | ≤0.025 | 8.40~9.60 | ||||||
| Grade 9 | ≤0.20 | 0.40~1.06 | ≤0.025 | ≤0.025 | 1.60~2.24 | 0.75~1.25 | ||||||
| Grade 10 | ≤0.20 | 0.10~0.35 | 1.15~1.50 | ≤0.03 | ≤0.015 | ≤0.15 | ≤0.25 | ≤0.015 | ≤0.50 | ≤0.12 | ≤0.06 | |
| Grade 11 | ≤0.10 | ≤0.35 | ≤0.6 | ≤0.025 | ≤0.025 | ≤0.50 | 35.0~37.0 | ≤0.50 | ||||
ASTM A333 Steel Pipe Mechanical Property:
| Standard | Grade | Tensile Strength (MPa) | Yield Point (MPa) | Elongation (%) | |
|---|---|---|---|---|---|
| Y | X | ||||
| ASTM A333 | Grade 1 | ≥380 | ≥205 | ≥35 | ≥25 |
| Grade 3 | ≥450 | ≥240 | ≥30 | ≥20 | |
| Grade 4 | ≥415 | ≥240 | ≥30 | ≥16.5 | |
| Grade 6 | ≥415 | ≥240 | ≥30 | ≥16.5 | |
| Grade 7 | ≥450 | ≥240 | ≥30 | ≥22 | |
| Grade 8 | ≥690 | ≥515 | ≥22 | ||
| Grade 9 | ≥435 | ≥315 | ≥28 | ||
| Grade 10 | ≥550 | ≥450 | ≥22 | ||
| Grade 11 | ≥450 | ≥240 | ≥18 | ||
ASTM A333 Steel Pipe Strike temperature condition:
| Grade | The lowest temperature for strike test | |
|---|---|---|
| °F | °C | |
| ASTM A333 Grade 1 | -50 | -45 |
| ASTM A333 Grade 3 | -150 | -100 |
| ASTM A333 Grade 4 | -150 | -100 |
| ASTM A333 Grade 6 | -50 | -45 |
| ASTM A333 Grade 7 | -100 | -75 |
| ASTM A333 Grade 8 | -320 | -195 |
| ASTM A333 Grade 9 | -100 | -75 |
| ASTM A333 Grade 10 | -75 | -60 |
ASTM A606 Type 4 Equivalent steel standards:
AGICO ANSON supplies ASTM A333 and equivalent low temperature welded steel pipe and seamless steel pipes in good quality, if you are interested in buying fine fluid pipe from reliable steel mills, please send an email now!
