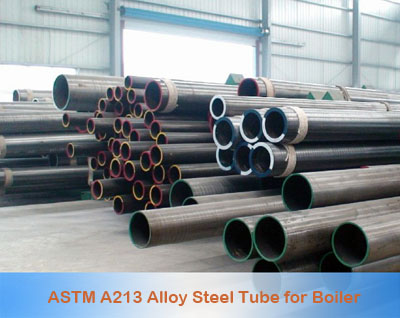

ASTM A213 Alloy Seamless Steel Pipe
ASTM A213 covers seamless ferritic and austenitic steel boiler,Boiler Tube, and heat-exchanger tubes for high temperature services, designated Grades T5, TP304, etc. Grades with letter H has highe creep-rupture strength compared with grades with no H. ASME SA213 seamless tubes are chrome moly Tubes with alloy element of chromium, molybdenum.
AGICO-ANSON is one of the leading manufacturer and supplier of ASTM A213 Low Alloy Steel Tubes of all grades and dimensions. We also keep stock of ASTM A213 seamless tubes of Alloy Steel:T2, T11, T12, T22, T91, T92in annealed and pickled, bright annealed, mill finish and polished conditions according to customer requirements.
Click here for ASTM A213 Stainless Steel Pipe Specification
ASTM A213 Alloy Steel Chemical Composition(%, max)
| Steel Grade | Chemical Composition% | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P, S Max | Cr | Mo | Ni Max | V | Al Max | W | B | Nb | N | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0.025 | 0.50~0.81 | 0.44~0.65 | – | – | – | – | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0.025 | 1.00~1.50 | 0.44~0.65 | – | – | – | – | – | – | – |
| T12 | 0.05~0.15 | Max 0.5 | 0.30~0.61 | 0.025 | 0.80~1.25 | 0.44~0.65 | – | – | – | – | – | – | – |
| T22 | 0.05~0.15 | Max 0.5 | 0.30~0.60 | 0.025 | 1.90~2.60 | 0.87~1.13 | – | – | – | – | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0.02 | 8.0~9.5 | 0.85~1.05 | 0.4 | 0.18~0.25 | 0.015 | – | – | 0.06~0.10 | 0.03~0.07 |
| T92 | 0.07~0.13 | Max 0.5 | 0.30~0.60 | 0.02 | 8.5~9.5 | 0.30~0.60 | 0.4 | 0.15~0.25 | 0.015 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 |
ASTM A213 Alloy Steel Mechanical properties:
| Steel Grade | Mechanical Properties | ||||
|---|---|---|---|---|---|
| T. S | Y. P | Elongation | Hardness | ||
| T2 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T11 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T12 | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW(85HRB) | |
| T22 | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T91 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW(25HRB) | |
| T92 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW(25HRB) | |
ASTM A213 Steel Tubes Outside Diameter and Wall Thickness Tolerance
| OD, mm | OD Tolerance |
|---|---|
| < 25.4 | +/- 0.10 |
| 25.4 – <= 38.1 | +/- 0.15 |
| > 38.1 -< 50.8 | +/- 0.20 |
| 50.8 -< 63.5 | +/- 0.25 |
| 63.5 -< 76.2 | +/- 0.30 |
| 76.2 – <= 101.6 | +/- 0.38 |
| > 101.6 – <= 190.5 | +0.38/-0.64 |
| > 190.5 – <= 228.6 | +0.38/-1.14 |
| OD, mm | WT Tolerance |
|---|---|
| <= 38.1 | +20%/-0 |
| > 38.1 | +22%/-0 |
