ASTM A106 Seamless Carbon Steel pipe
ASTM A106 pipe is the standard specification for seamless carbon steel pipe for high-temperature service. Applications are transport gasses or fluids in refineries and boiler plant bearing high temperatures and pressures. Pipe produced according to ASTM A106 shall be suitable for bending, flanging, welding and other forming operations.AGICO ANSON supplies astm a106 grade b seamless pipe and erw pipe, if you are interested in buying ASTM A106 pipe, don't hesitate to contact us now!
For ASTM A106 seamless steel pipe could transport fluids or gasses at high temperature and pressure levels, with 3 grades A, B, C, most common used ASTM A106 Grade B is widely used in the projects of oil and gas refineries, power plants, petrochemical plants, boilers.
ASTM A106 Chemical composition:
| Steel Grade | C, max.% | Mn % | P, max | S, max | Si, min | Cr, max | Cu, max | Mo, max | Ni, max | V, max |
|---|---|---|---|---|---|---|---|---|---|---|
|
Grade A |
0.25 | 0.27 - 0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
|
Grade B |
0.30 | 0.29 - 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
|
Grade C |
0.35 | 0.29 - 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |

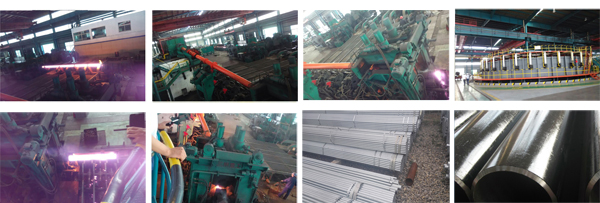

ASTM A106 Seamless Steel Pipe Production
ASTM A106 Mechanical Property:
| Grade | Tenssile Test MPa or N/mm2 | Remarks (Similar to JIS) | |
|---|---|---|---|
| MIn. Yield Point | Tensile Strength | ||
| Gr A | 205 | 330Min | (STPG370) |
| Gr B | 240 | 415Min | (STPG410) |
| Gr C | 275 | 485Min | (STPG480) |
ASTM A106 Dimension Tolerances:
| Pipe Type | Pipe Sizes | Tolerances | |
|---|---|---|---|
| Cold Drawn | OD | ≤48.3mm | ±0.40mm |
| ≥60.3mm | ±1%mm | ||
| WT | ±12.5% | ||
Number of Tests Required
| NPS | On One Length from Each Lot of | |
|---|---|---|
| Tensile | 5 and smaller | 400 or less |
| 6 and larger | 200 or less | |
| Bending | 2 and smaller | 400 or less |
| Flattening | 2 through 5 | 400 or less |
| 6 and over | 200 or less |
(Note: This information is collected from ASTM Specification A106. Please contact us for more details of product standard specification )
