As a professional supplier of steel line pipes, we offer a full range of API 5L X60/L415 pipes tailored for pipeline transportation in the oil and gas industry. Whether for onshore or offshore use, sour service, or high-pressure applications, our X60/L415 pipes comply with the latest specifications and third-party inspection standards.
API 5L X60 is a steel grade for oil and gas transmission line pipe with medium yield strength of 415 Mpa, covering seamless and welded pipe, AGICO supplies welded pipe in the forms of ERW, LSAW, SSAW(HSAW), both psl1 and psl2 are available,
- API 5L X60 PSL1 Pipe: manufactured for common industry use.
- API 5L X60 PSL2 Pipe: Known as API 5L X60Q/M/N, X60QS/MS, manufactured with higher chemical and mechanical properties, can be used for sour services
API 5L X60/L415 Pipe Specifications Offered from AGICO
API 5L X60/L415 is a high-strength, low-alloy steel grade under the API 5L standard. It is widely used for pipeline transportation systems in the petroleum and natural gas industries. AGICO supplies seamless and various types of X60 welded pipes from large steel mills in China, the product range covers:
| Grade | Type | Wall Thickness | OD Range | Length | PSL Level |
|---|---|---|---|---|---|
| X60 | Seamless/Welded | SCH 10 to 160 | 1/2" – 48" | 6m – 12m | PSL1 / PSL2 |
| API 5L X60 PIPE MANUFACTURING SPECIFICATIONS | ||
|---|---|---|
| Manufacturing Methods | Standards | Available Forms & Types |
| Seamless |
API 5L ISO 3183 EN10208 ASME B36.10M |
API 5L X60 Seamless Pipe |
| ERW (Electric Resistance Welded) | X60 Electric Resistance Welded (ERW) Pipe | |
| LSAW (Longitudinal Submerged Arc Welded) | LSAW/SSAW Spiral Welded Pipe | |
| SSAW (Spiral Submerged Arc Welded) | ||
Common Features:
|
||
Chemical Composition of API 5L X60/L415 PSL1 AND PSL2
API 5L X60 PSL1
| Element | Max % |
|---|---|
| C | 0.28 |
| Mn | 1.40 |
| P | 0.030 |
| S | 0.030 |
API 5L X60 PSL2
| Element | Max % |
|---|---|
| C | 0.24 |
| Mn | 1.40 |
| P | 0.025 |
| S | 0.015 |
| Nb, V, Ti | limited as microalloys |
Chemical Composition of API 5L X60/L415 (Q/M/N/QS/MS)
| Type | Carbon (C) | Sulfur (S) | Phosphorus (P) | Micro-alloying Elements | Special Requirements |
|---|---|---|---|---|---|
| X60 / L415 | ≤0.26% | ≤0.03% | ≤0.03% | Nb, V, Ti (grain refinement) | Basic PSL1 grade9 |
| Q/M/N | ≤0.09% | ≤0.01% | ≤0.015% | Mo, Cr (hardenability) | Higher cleanliness1 |
| QS/MS | ≤0.05% | ≤0.002% | ≤0.010% | Cu, Ni (corrosion resistance) | Mandatory HIC testing57 |
Mechanical Properties of API 5L X60/L415 Pipe
| Property | PSL1 | PSL2 |
|---|---|---|
| Yield Strength | ≥ 60,000 psi | ≥ 60,000 psi |
| Tensile Strength | 75,000–95,000 psi | 75,000–95,000 psi |
| Elongation | ≥ 20% | ≥ 20% |
How to Choose Between API 5L X60/L415 PSL1 and PSL2

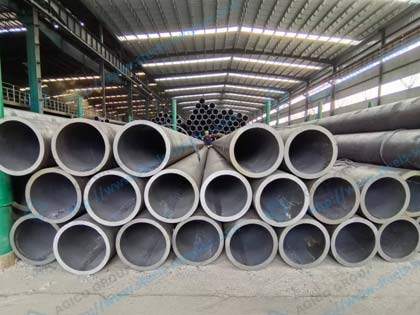

API 5L X60 Q Line Pipe

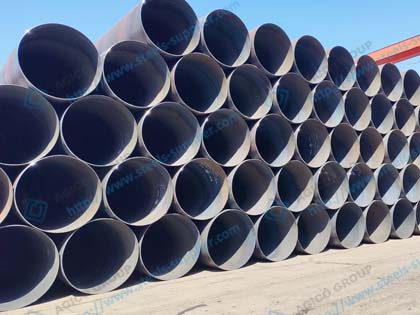

API 5L X60 SSAW Pipe

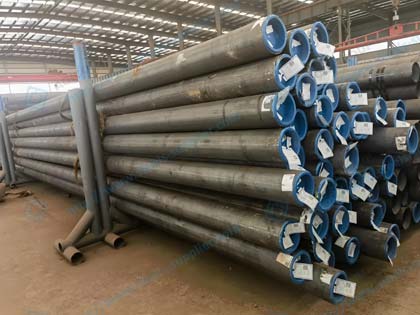

API 5L X60 N Seamless PipeAPI 5L PSL2 has stricter limits on S, P, and C content than PSL1, it also requires additional NDT (non-destructive testing), CVN impact tests, full traceability is mandatory for PSL2. API 5L PSL2 X60 is preferred for more demanding and sour service conditions.
| Characteristic | PSL1 Standard | PSL2 High-End Specifications | Differences in Application |
|---|---|---|---|
| Chemical composition | C≤0.28%, S≤0.030% | C≤0.24%, S≤0.015% | Resistance to hydrogen sulfide corrosion increased by 300% |
| Mechanical properties | Yield strength ≥415MPa | Yield strength ≥415MPa | High-pressure transmission core indicators |
| Impact toughness | Optional | -30°C CVN≥40J | Mandatory requirements for Arctic/deep sea projects |
| Nondestructive Testing | Random inspection | 100% UT/AUT+RT | Welding defect detection rate 99.9% |
Microalloying technology analysis: PSL2 grade X60 adopts Nb/V/Ti microalloying design, with grain refinement to ASTM grade 12, which significantly improves low temperature toughness
X60 Position in the API 5L /L415 Strength Grade System
The API 5L standard divides grades according to the minimum yield strength (unit: ksi), forming a complete strength sequence:
- Medium-high strength level: between basic level (X42-X52) and ultra-high strength level (X70/X80).
- Performance balance point: taking into account high strength, good weldability and toughness, it is one of the mainstream choices for onshore/offshore trunk pipeline networks.
| Grade Level | X42 | X46 | X52 | X56 | X60 | X65 | X70 | X80 |
|---|---|---|---|---|---|---|---|---|
| Tensile Strength(min) | 42 ksi (290 MPa) | 46 ksi (315 MPa) | 52 ksi (360 MPa) | 56 ksi (390 MPa) | 60 ksi (415 MPa) | 65 ksi (450 MPa) | 70 ksi (485 MPa) | 80 ksi (555 MPa) |
Applications of API 5L X60 Pipes of Different Manufacture Technologies
Same as other steel grades of API 5L, X60 Pipe is used for oil and gas pipeline transmission for onshore and offshore cases. X60 PSL2 is used as sour service piplines ( NACE MR0175 compliant available ) for special conditions, for example CO2 and H2S-containing oil and gas transmission. Here is the recomond tips for choosing welded API 5L X60 Pipes for different working environment.
| Application Areas | Recommended process | Anti-corrosion solutions | Certification requirements |
|---|---|---|---|
| Deep sea oil and gas pipeline | SSAW + PSL2 | 3LPP coating + cathodic protection | DNV-OS-F101 |
| High sulfur oil and gas fields | Seamless PSL2 | Lining Alloy 625 | NACE MR0103/0175 |
| Polar cryogenic pipeline | LSAW PSL2 | Double layer FBE -50°C certified | ISO 3183 Category III |
| CO2 oil injection pipe | ERW PSL1 | Epoxy resin inner coating | ASME B31.8 Class 4 |

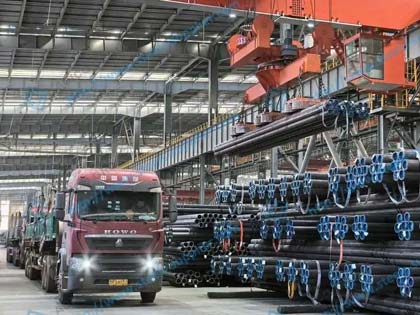

Why Choose AGICO as Your API 5L X60/L415 Pipe Supplier
AGICO has been supplying octg products to Middle East/North America/Southeast Asia projects, with the exporting experience for over 20 years, API 5L X60 is one of the hot sale products,
-
Global Reach: We export to over 45 countries with stable shipping routes.
-
Small MOQ Accepted: From small batches to full project quantities.
-
Third-Party Inspection: SGS, BV, DNV, TUV certifications available.
-
Comprehensive Documentation: MTC, EN10204 3.2, NDT reports provided.
-
Custom Solutions: Pipe cutting, coating, bevel processing ±0.5°, Spraying to R2 level, Anti-rust oil + VCI packaging and marking available.
Frequently Asked Questions of API 5L X60/L415 Pipe
Q1: How to choose between X60 and X52 in pipeline design?
A: X60 has a 15% higher yield strength, which can reduce the wall thickness by 10% in high-pressure trunk lines and reduce the transportation cost of a ton of steel by $85 (DNVGL-RP-F101 calculation model)
Q2: Is X60 suitable for sour service?
A: Yes, PSL2 X60 pipes with proper chemical control and testing comply with NACE MR0175 for sour environments.
Q3: Can I get mill certificates and inspection reports?
A: Yes, we provide full documentation including MTC, NDT, and third-party inspection reports.
Q4: What’s your lead time for X60 pipes?
A: Standard pipes can ship within 7–14 days. Custom orders may require 3–4 weeks depending on quantity and specification.
Q5: What are the measures to ensure the life of X60 in acidic environment?
A: Triple protection:
- a) Carbon equivalent CE≤0.43 to control welding cold cracking
- b) HRC≤22 hardness guarantee
- c) HIC test (CLR≤15%)
