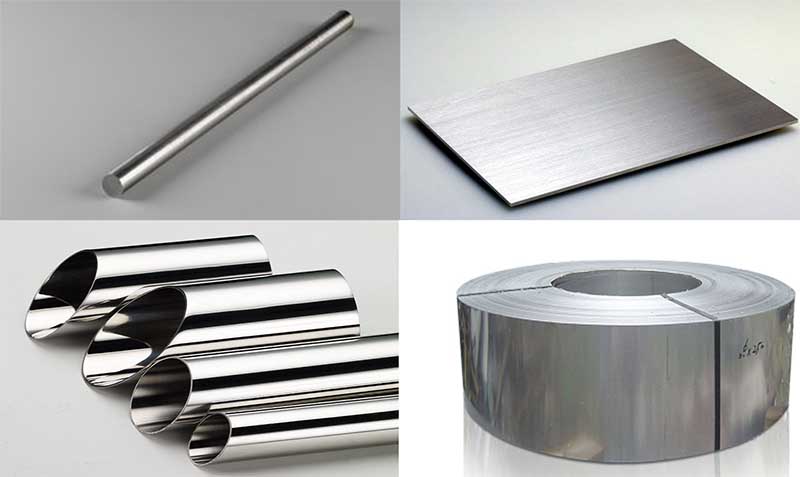

304 stainless steel products:
304 stainless steel plate 304 stainless steel tube 304 stainless steel coil 304 stainless steel bar
304 Stainless Steel Introduction:
304 stainless steel is the most common stainless steel type used in various industries, it has enough excellent corrosion resistance value for normal application need. The most common form of 304 stainless steel is 18-8, stainless steel, which contains 18 percent chromium and 8 percent nickel.
304 stainless steel can withstand corrosion from most oxidizing acids. This feature makes 304 easy to sanitize, and it's perfect for kitchen and food applications and other applications as buildings, decoration, and site furnishings.
304 stainless steel has one disadvantages: it is susceptible to corrosion from chloride solutions higher than 25 ppm, the corrosion location is named pitting, it will spread beneath protective chromium layer, or from saline environments like the coast. Chloride ions can create localized areas of corrosion, called "pitting,"
304 stainless steel Chemistry % by Weight
| Element | Steel Grade | |||
|---|---|---|---|---|
| Type 302 | Type 304 | Type 304L | Type 305 | |
| Fe | 64.99-74% | |||
| Cr | 17% | 18% | 18% | 17% |
| Ni | 8% | 8% | 8% | 10.50% |
| Mn | 2% | 2% | 2% | 2% |
| N | 0.10% | 0.10% | 0.10% | - |
| S | 0.03% | 0.03% | 0.03% | 0.03% |
| C | 0.15% | 0.08% | 0.03% | 0.12% |
| Si | 0.75% | 0.75% | 0.75% | 0.75% |
| P | 0.045% | 0.045% | 0.045% | 0.045% |
304 Stainless Steel Physical Properties:
| Melting Point | Density | Specific Gravity |
Modulus of Elasticity in Tension |
|---|---|---|---|
|
1399-1421° C |
7.90 g/cm³ |
|
200 Gpa |
304 Stainless Steel Mechanical Properties:
| Alloy | Temper |
Tensile Strength Minimum (psi) |
Yield Strength Minimum 0.2% offset (psi) |
% Elongation in 2" Minimum |
Notes |
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
